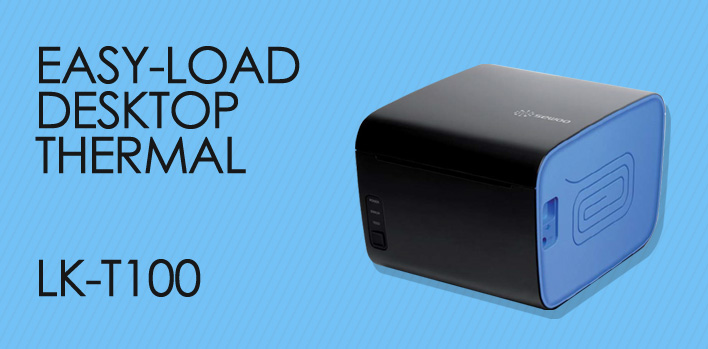

- Compact & Unique design : excellent design width small size and low height.
- Front paper exit
- Spill-proof function : superior resistance to spill with a ssealed top.
- High speed printing : 160mm/sec
- Paper width : 80mm
- ESC/POS command compatible
- Easy to use & Innovative
Specification
| ITEM |
TYPE |
| MODEL |
LK-T100 |
| PRINTING |
METHOD |
Direct Thermal |
| SPEED |
160mm/sec |
| RESOLUTION |
180DPI |
| WIDTH |
72mm(512Dots/Line) |
| PAPER |
TYPE |
Thermal Paper |
| WIDTH |
80mm |
| THICKNESS |
0.06mm ~ 0.09mm |
| ROLL DIAMETER |
Max. ø 80mm |
| ROLL CORE INNER |
12.5mm ± 0.5mm |
| RELIABILITY |
TPH LIFE |
160km |
| MCBF |
60,000,000Lines |
| AUTO CUTTER |
1,500,000cuts(Guillotine) |
| SENSOR |
Paper End, Paper Low, Cover Open, Black Mark Sensor(Option) |
| INTERFACE |
USB, Serial |
| EMULATION |
ESC/POS Command Compatible |
| DRIVER |
Windows Printer Driver(2000, XP, 2003, VISTA, 7), WEPOS, OPOS, Linux, JavaPOS |
| POWER |
TYPE |
External SMPS |
| AC |
100 ~ 240Vac 50/60Hz |
| DC |
24Vdc / 2.5A |
| TEMPERATURE |
OPERATION |
5 ~ 40°C |
| STORAGE |
-20 ~ 60°C |
| DIMENSION |
136 × 15× 111 mm (W × D × H ) |
| WEIGHT |
0.6kg |
