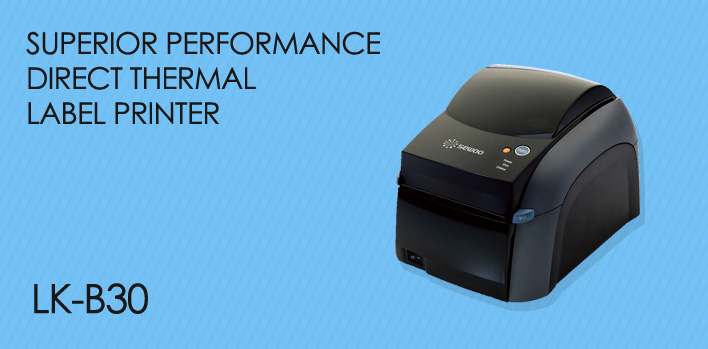

| MODEL | LK-B30 | ||
| PRINTING METHOD | Direct Thermal | ||
| PRINTING SPEED | Up to 152mm/sec | ||
| PRINT WIDTH | 104mm(4.1") | ||
| PRINT LENGTH | 1250mm(49.2") | ||
| RESOLUTION | 203DPI(8 dots/mm) | ||
| PAPER WIDTH (min~max) | 18mm ~ 118mm(0.7"~ 4.64") | ||
| PAPER ROLL SIZE (min~max) | Ø 25.4mm ~ Ø 127mm(1" ~ 5.0") | ||
| PAPER THICKNESS | 0.06mm ~ 0.20mm | ||
| PAPER TYPE | Label, Tag, Continuous, Fanfold | ||
| PAPER SENSOR | Label Gap Sensor, Notch Sensor, Black Mark Sensor | ||
| INTERFACE | Serial(RS-232C), Parallel(IEEE-1284), USB |
||
| MEMORY | STANDARD | 8MB SDRAM, 5MB Flash | |
| OPTION | 8MB Flash | ||
| SERIAL BAUD RATE | 115,200 bps(max) | ||
| PROGRAMMING LANGAUGE | EPL II, ZPL II Command compatible | ||
| BARCODE | 1D | Code39, Code128 A/B/C, UCC/EAN-128, Code93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A and E with 2 and 5 add on, EAN-8, EAN-13, EAN-8 and 13 with 2 or 5 digit extentions, Postnet, Plessey(MSI-1), MSI-3, German Post Code |
|
| 2D | Aztec Code, PDF 417, QR Code, MaxiCode, Data matrix (EPL II and ZPL II) |
||
| Code 49(ZPL II) | |||
| FONT SPECIFICATION | 6 bitmapped – 8×12, 10×16, 12×20, 14×24,32×48, 24×24(KSC5601) (EPL II) | ||
| 7 bitmapped - 5×9, 7×11, 10×18, 15×28, 13×26, 40×60,13×21 (ZPL II) 1 smooth scalable (ZPL II) |
|||
| 190mm x 254mm x 169mm(W x D x H) | |||
| WEIGHT(KG) | 2KG | ||
| POWER | AC 100~240V, 24VDC,2.5A | ||
| TEMPERATURE | OPERATION | 5 ~ 40℃ | |
| STORAGE | -20 ~ 60℃ | ||
| HUMIDITY | OPERATION | 35 ~ 80% | |
| STORAGE | 10 ~ 90% | ||
| CERTIFICATION | FCC, MIC, UL/cUL, CE, RoHS | ||
